Hysun Containers

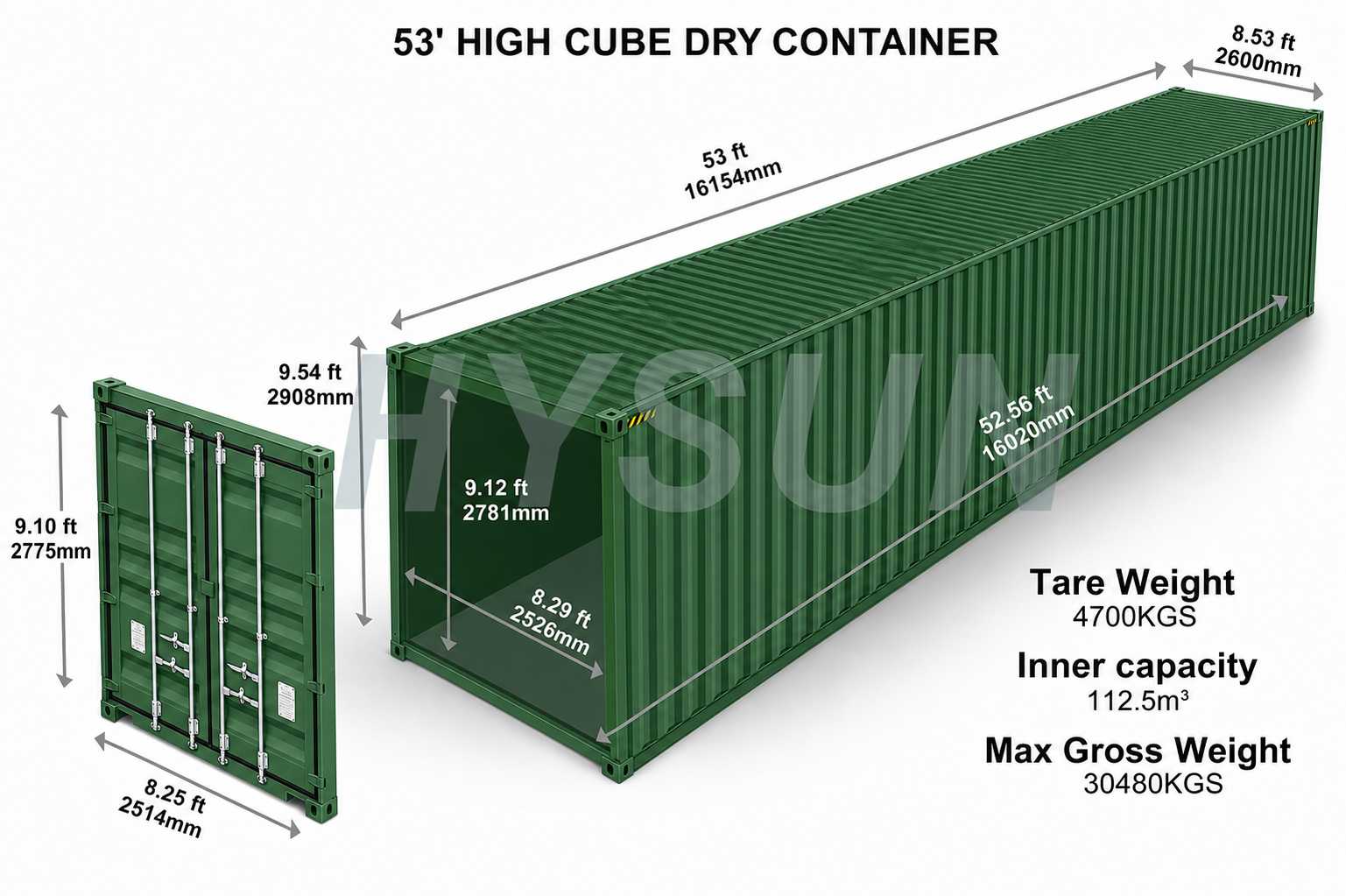

53HC High Cube Brand New Shipping Container
Overview
Essential details
Product description
|
External Dimensions
(L x W x H)mm |
12192×2438×2896
|
Internal Dimensions
(L x W x H)mm |
12032x2352x1950
|
|
Door Dimensions
(L x H)mm |
/ |
Inner capacity
|
67.0 CBM
|
|
Tare Weight
|
5480KGS
|
Max Gross Weight
|
25000 KGS
|
Material list
Packaging & delivery
Transport and ship with SOC style overworld
(SOC: Shipper own container)
CN:30+ports US:35+ports EU：20+ports
Applications or special features
1. Oversized Cargo:
Flat rack containers are commonly used for transporting oversized or irregularly shaped cargo, such as large machinery, heavy equipment, or vehicles. The absence of side walls and roof allows for easy loading and securing of bulky items.
2. Heavy or High Load Capacity:
Flat rack containers are designed to handle heavy loads or items with high point loads. The corner posts and sturdy floor structure provide stability and support, making them suitable for transporting heavy machinery, steel structures, or construction materials.
3. Project Cargo:
Flat rack containers are often used for project cargo shipments, such as transporting wind turbine components, oil and gas equipment, or industrial machinery. Their open design allows for flexible loading options and secure lashing to ensure safe transportation.
4. Freight Consolidation:
Flat rack containers are utilized for consolidating multiple smaller cargo items into a single shipment. This helps optimize space and maximize efficiency in the transport process, particularly for irregularly shaped or oversized items that cannot fit in standard containers.
Please note that proper loading and securing procedures should be followed to ensure the safe transportation of cargo using flat rack containers.
Production line
Our factory promotes lean production activities in an all-round way, opening the first step of forklift-free transportation and closing the risk of air and ground transportation injury in workshop, also creating a series of lean improvement achievements such as streamlined production of container steel parts etc.… It is known as a “cost-free, cost effective” model factory for lean production
Output
Every 3 mins to get a container from automatic production line.
Industrial Storage is Easy With Containers
Industrial Equipment Storage is perfectly suited for the Shipping Containers. With a marketplace full of easy add-on products that
make it quick and easy to adapt.
Building a Home with Shipping Containers
One of the most popular applications these days is to build your dream home with re-purposed Shipping Containers. Save time and
money with these highly adaptable units.
Certificate
FAQ
Q: What about delivery date?
A: This is basis on the quantity. For order less than 50 units, shipment date:3-4 weeks. For large quantity, pls check with us.
Q: If we have cargo in China, I want order one container to load them, how to operate it?
A: If you have cargo in China, you only pick our container up instead of shipping company's container, and then load your goods, and arranging clearance custom, and export it like normally do. It's called SOC container. We have rich experience in handling it.
Q: What size of container can you provide ?
A: We provide10'GP,10'HC, 20'GP, 20'HC, 40'GP, 40'HC, 45'HC and 53'HC, 60’HC ISO shipping container. Also customized size is acceptable.
Q: What is your terms of packing?
A: It is transporting complete container by container ship.
Q: What is your terms of payment?
A: T/T 40% down payment before production and T/T 60% balance before delivery. For big order, pls contact us to negations.
Q: What certificate can you provide us ?
A: We provide the CSC certificate of ISO shipping container.
Overview
Essential details
| Type: | 40ft Flat Rack Container |
| Capacity: | 67.0 CBM |
| Internal Dimensions(l x W x H)(mm): | 12032x2352x2393 |
| Color: | Beige/Red/Blue/Grey Customized |
| Material: | Steel |
| Logo: | Available |
| Price: | Discussed |
| Length (feet): | 40' |
| External Dimensions(l x W x H)(mm): | 12192x2438x2591 |
| Brand Name: | Hysun |
| Product Keywords: | 40ft Flat Rack shipping container |
| Port: | Shanghai/Qingdao/Ningbo/Shanghai |
| Standard: | ISO9001 Standard |
| Quality: | Cargo-worthy Sea Worthy Standard |
| Certification: | ISO9001 |
Essential details
| Type: | 40ft Flat Rack Container |
| Capacity: | 67.0 CBM |
| Internal Dimensions(l x W x H)(mm): | 12032x2352x2393 |
| Color: | Beige/Red/Blue/Grey Customized |
| Material: | Steel |
| Logo: | Available |
| Price: | Discussed |
| Length (feet): | 40' |
| External Dimensions(l x W x H)(mm): | 12192x2438x2591 |
| Brand Name: | Hysun |
| Product Keywords: | 40ft Flat Rack shipping container |
| Port: | Shanghai/Qingdao/Ningbo/Shanghai |
| Standard: | ISO9001 Standard |
| Quality: | Cargo-worthy Sea Worthy Standard |
| Certification: | ISO9001 |
Product description
|
External Dimensions
(L x W x H)mm |
12192×2438×2896
|
Internal Dimensions
(L x W x H)mm |
12032x2352x1950
|
|
Door Dimensions
(L x H)mm |
/ |
Inner capacity
|
67.0 CBM
|
|
Tare Weight
|
5480KGS
|
Max Gross Weight
|
25000 KGS
|
Material list
|
S/N
|
Name
|
Desc
|
|
1
|
Corner
|
ISO standard corner, 178x162x118mm
|
|
2
|
Floor Beam for long side
|
Steel: CORTEN A, thickness: 4.0mm
|
|
3
|
Floor Beam for short side
|
Steel: CORTEN A, thickness: 4.5mm
|
|
4
|
Floor
|
28mm, intensity: 7260kg
|
|
5
|
Column
|
Steel: CORTEN A, thickness: 6.0mm
|
|
6
|
Inner column for back side
|
Steel: SM50YA + channel steel 13x40x12
|
|
7
|
Wall panel-long side
|
Steel: CORTEN A, thickness: 1.6mm+2.0mm
|
|
8
|
Wall panel-short side
|
Steel: CORTEN A, thickness: 2.0mm
|
|
9
|
Door Panel
|
Steel: CORTEN A, thickness: 2.0mm
|
|
10
|
Horizontal beam for door
|
Steel: CORTEN A, thickness: 3.0mm for standard container and 4.0mm for high cube container
|
|
11
|
Lockset
|
4 set container lock bar
|
|
12
|
Top Beam
|
Steel: CORTEN A, thickness: 4.0mm
|
|
13
|
Top panel
|
Steel: CORTEN A, thickness: 2.0mm
|
|
14
|
Paint
|
The paint system is guaranteed against corrosion and/or paint failure for a period of five (5) years.
Inside wall paint thickness: 75µ Outside Wall paint thickness: 30+40+40=110u Outside Roof paint thickness: 30+40+50=120u Chassis paint thickness: 30+200=230u |
Packaging & delivery
Transport and ship with SOC style overworld
(SOC: Shipper own container)
CN:30+ports US:35+ports EU：20+ports
Applications or special features
1. Oversized Cargo:
Flat rack containers are commonly used for transporting oversized or irregularly shaped cargo, such as large machinery, heavy equipment, or vehicles. The absence of side walls and roof allows for easy loading and securing of bulky items.
2. Heavy or High Load Capacity:
Flat rack containers are designed to handle heavy loads or items with high point loads. The corner posts and sturdy floor structure provide stability and support, making them suitable for transporting heavy machinery, steel structures, or construction materials.
3. Project Cargo:
Flat rack containers are often used for project cargo shipments, such as transporting wind turbine components, oil and gas equipment, or industrial machinery. Their open design allows for flexible loading options and secure lashing to ensure safe transportation.
4. Freight Consolidation:
Flat rack containers are utilized for consolidating multiple smaller cargo items into a single shipment. This helps optimize space and maximize efficiency in the transport process, particularly for irregularly shaped or oversized items that cannot fit in standard containers.
Please note that proper loading and securing procedures should be followed to ensure the safe transportation of cargo using flat rack containers.
Production line
Our factory promotes lean production activities in an all-round way, opening the first step of forklift-free transportation and closing the risk of air and ground transportation injury in workshop, also creating a series of lean improvement achievements such as streamlined production of container steel parts etc.… It is known as a “cost-free, cost effective” model factory for lean production
Output
Every 3 mins to get a container from automatic production line.
Industrial Storage is Easy With Containers
Industrial Equipment Storage is perfectly suited for the Shipping Containers. With a marketplace full of easy add-on products that
make it quick and easy to adapt.
Building a Home with Shipping Containers
One of the most popular applications these days is to build your dream home with re-purposed Shipping Containers. Save time and
money with these highly adaptable units.
Certificate
FAQ
Q: What about delivery date?
A: This is basis on the quantity. For order less than 50 units, shipment date:3-4 weeks. For large quantity, pls check with us.
Q: If we have cargo in China, I want order one container to load them, how to operate it?
A: If you have cargo in China, you only pick our container up instead of shipping company's container, and then load your goods, and arranging clearance custom, and export it like normally do. It's called SOC container. We have rich experience in handling it.
Q: What size of container can you provide ?
A: We provide10'GP,10'HC, 20'GP, 20'HC, 40'GP, 40'HC, 45'HC and 53'HC, 60’HC ISO shipping container. Also customized size is acceptable.
Q: What is your terms of packing?
A: It is transporting complete container by container ship.
Q: What is your terms of payment?
A: T/T 40% down payment before production and T/T 60% balance before delivery. For big order, pls contact us to negations.
Q: What certificate can you provide us ?
A: We provide the CSC certificate of ISO shipping container.
